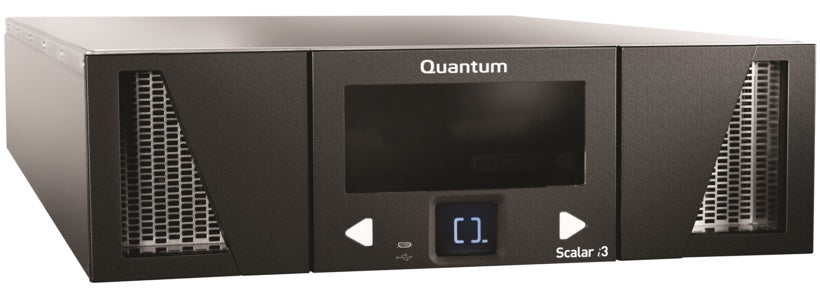

Quantum Scalar i3 Library, 3U Control Module, 25 licensed slots, no tape drives, equipment rack must support product depth of 36.4in (92.5cm)
Base library with no tape drives included. Used whenever an expansion module is not initially needed (i.e., initial configuration is up to 50 slots and up to three tape drives). If larger initial configuration (more than 50 slots or more than three tape drives) is needed or customer wants a base system with a pre-installed expansion module to accommodate easier future expansion, order LSC33-BSJ0-001A. Includes 3U library control module with embedded Ethernet, partitioning capability, 25-slot license, 3U rackmount kit, one power supply, one 3ft (0.9m) C13-C14 and one 3ft (0.9m) L-5-15 power cords. Supports up to a maximum of 50 slots and three tape drives before an Expansion Module is needed. Scalar i3 SAS tape drives require a mini-SAS-HD 8644 connector on the SAS cable. Includes Bezel to support Ransom Block Feature upgrade option (LSC3A-AMAG-ST1A). Does not include an expansion module, tape drives, Fibre Channel or Ethernet cables. Other types of power cords should be locally sourced. Media labels are not included. Maximum of seven expansion modules, 24 tape drives and 400 licensed slots per i3 library. Requires standard 19in (48.2cm) four-post rack that supports a minimum product depth of 36.4in (925mm) or has an external rack depth at least 42.13in (107.0cm) deep, such as APC AR3100. Customer installable, but phone-based installation (LSC33-NSYN-PB00) or onsite installation (LSC33-NSYS-000) is recommended.
